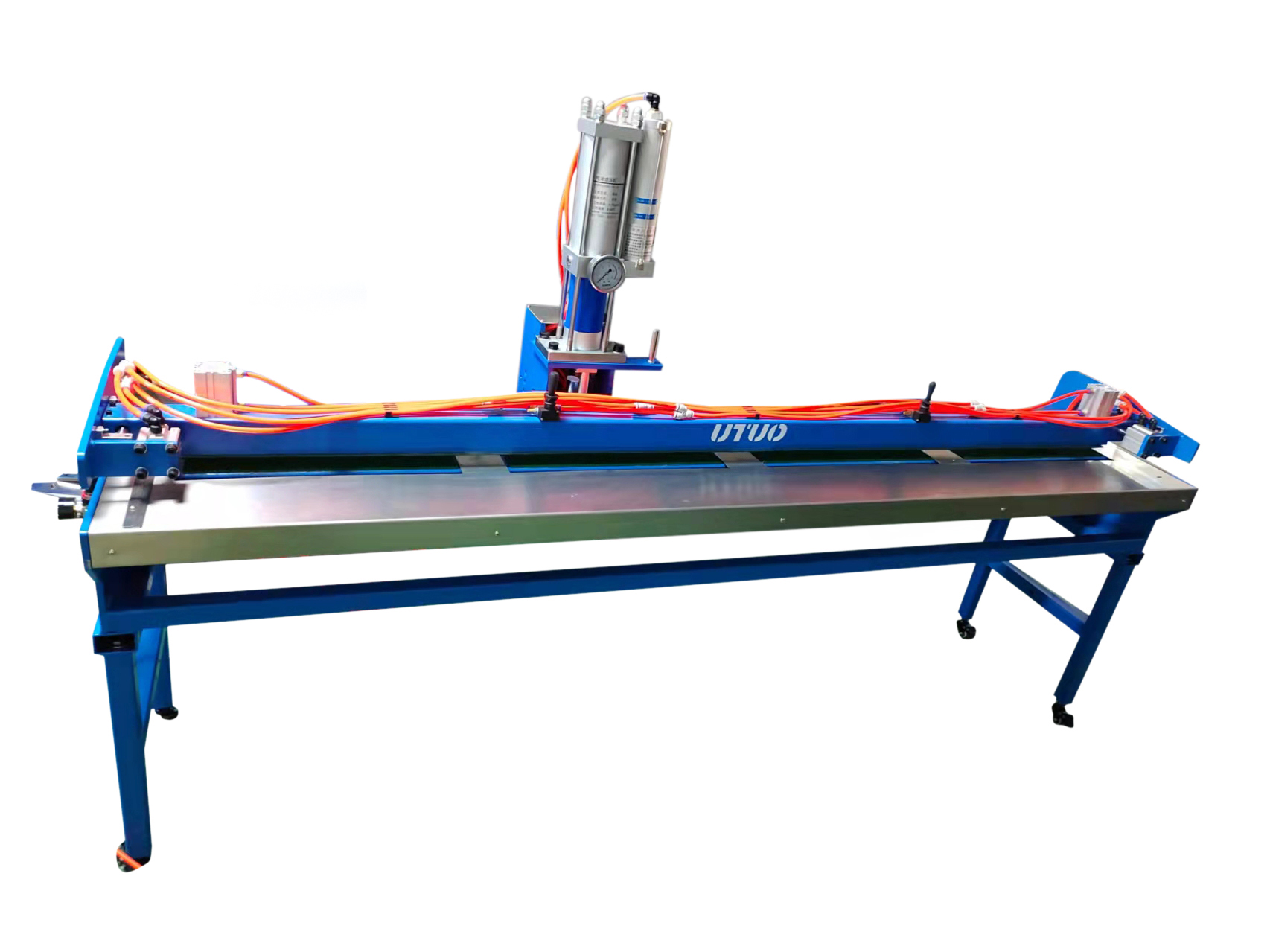

Pneumatic Finger Puncher is Suitable for prepping single finger
and finger-over-finger splices for PVC and polyurethane belts;
making finger punching quickly and easily.
Use Booster cylinder, high cylinder strength, work with high quality blade,
punch belt completed at one time. 10 times higher speed than manual finger press.

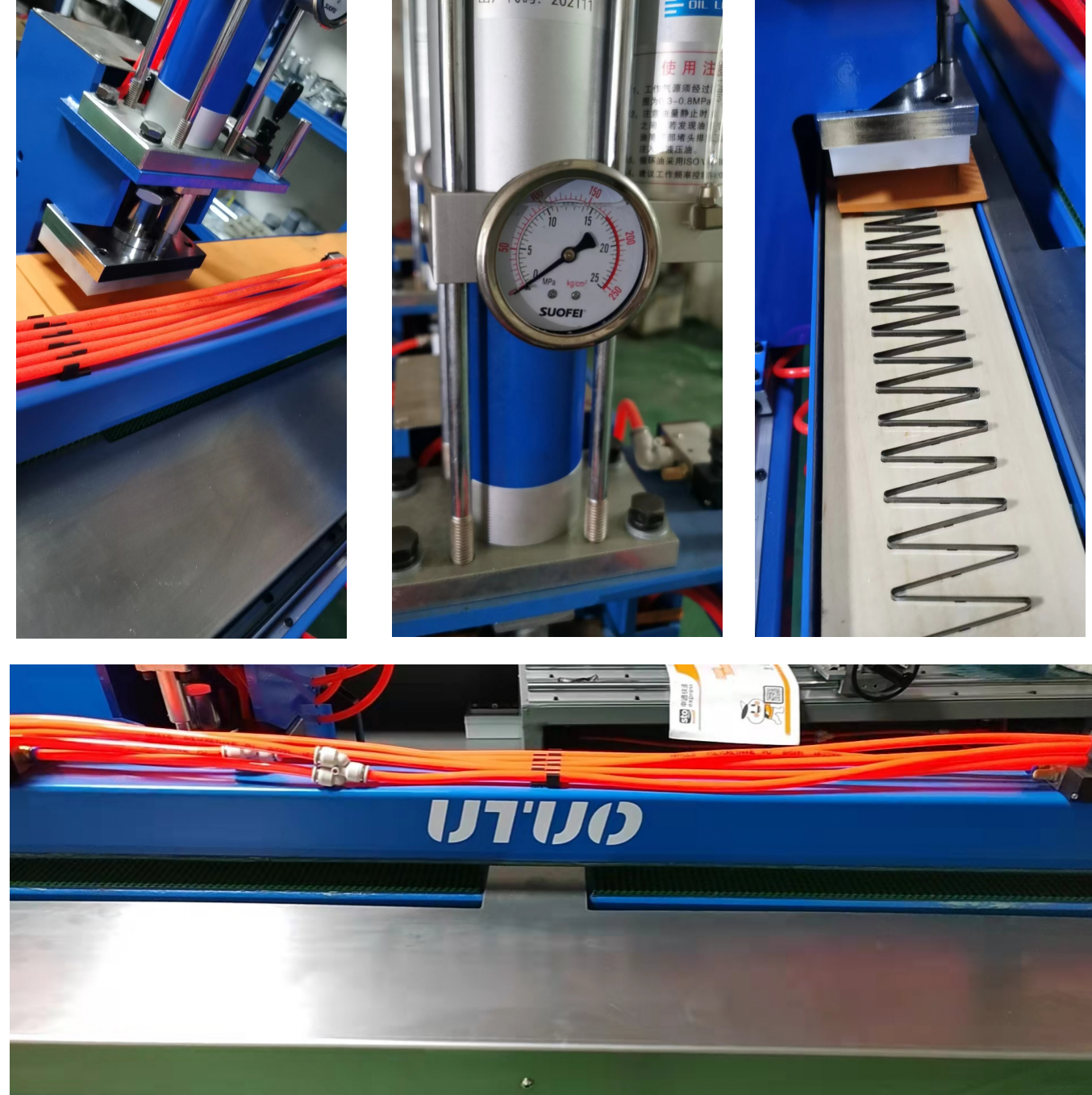

Precision moving and punching, use guide rail, can move smooth and easy
to control the punching position.
Blade size: 20*50mm,10*70mm, 10*80mm, 10*90mm, 20*80mm etc.
Customization is acceptable )
| Model |
UP1000 |
UP1600 |
UP2000 |
| Machine length (mm) |
1250 |
1780 |
2280 |
| Machine Width (mm) |
650 |
650 |
650 |
| Machine Height (mm) |
1680 |
1700 |
1700 |
| Machine Weight (kg) |
65 |
111 |
325 |
| Packing Weight (kg) |
130 |
208 |
380 |
| Packing size (mm) |
1300x670x960mm |
1800x670x960mm |
2640x670x1800mm |
